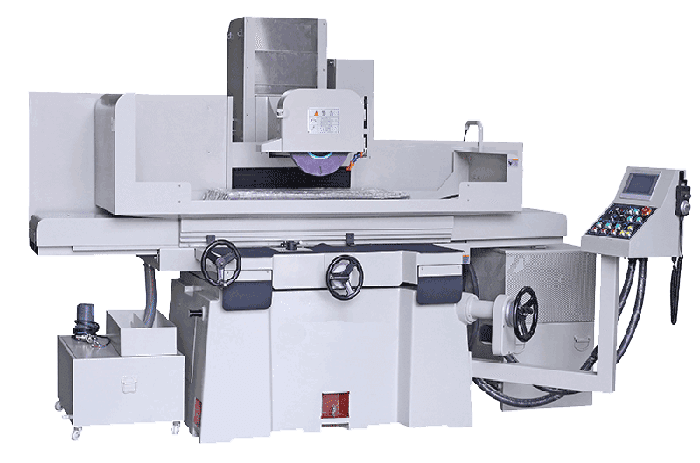

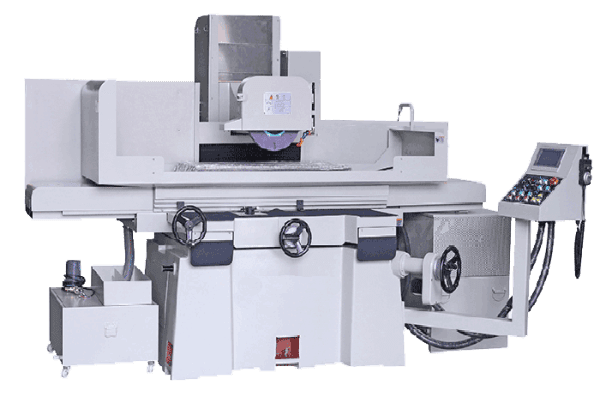

Precision Surface Grinder(HM4080AHD HM4080GHD)

Precision Surface Grinder(HM4080AHD HM4080GHD)

  1. Precision surface grinding machines for impeccable surface finishes.
  2. Two models are available: HM4080AHD and HM4080GHD, providing versatility for different applications.
  3. Robust construction ensures stability and durability during grinding operations.
  4. Equipped with advanced features for efficient and accurate surface grinding.
SKU: Precision Surface Grinder(HM4080AHD HM4080GHD) Category: Tag:
机型Model单位UnitHM4080AHDHM4080G-AHD
工作台Worktable工作台尺寸Worktable Sizemm400x800400x800
最大研磨长度（X轴）Max Grinding Length (X-axis)mm920920
最大研磨宽度（Y轴）Max Grinding Width (Y-axis)mm450450
主轴至工作台距离（Z轴）Distance from Spindle to Worktable (Z-axis)mm600680
工作台T型槽T-slot on WorktablemmxN14x314x3
磁盘尺寸Disk Sizemm400X800400X800
进给FeedY轴快速移动（50HZ/60HZ）Y-axis Rapid Movement (50HZ/60HZ)mm/min990/1190990/1190
Y轴自动进给量Y-axis Automatic Feedmm0.1-100.1-10
Y轴手轮每刻度进给Y-axis Handwheel Feed per Graduationmm0.020.02
Y轴手轮每转进给Y-axis Handwheel Feed per Revolutionmm55
Z轴快速进给量Z-axis Rapid Feedmm/min230230
Z轴手轮每刻度进给Z-axis Handwheel Feed per Graduationmm0.0050.005
Z轴手轮每转进给Z-axis Handwheel Feed per Revolutionmm0.20.2
磨头Grinding Head砂轮尺寸Grinding Wheel Sizemm350x20-40x127350x20-40x127
主轴转速（50HZ/60HZ）Spindle Speed (50HZ/60HZ)rpm1450/17401450/1740
精度Accuracy工作台平行Worktable Parallelismmm0.0080.005
主轴跳动Spindle Runout0.0020.002
表面粗糙度Surface RoughnessμmRa0.32Ra0.25
功率Power主轴电机功率Power Spindle Motor Powerhp5.55.5
上下驱动功率Vertical Driving Powerw8080
液压电机功率Hydraulic Motor Powerhxp3*63*6
水泵功率Pump Powerw120120
前后驱动电机功率Front and Rear Drive Motor Powerw8080
重量Weightkg23003300
外形尺寸Overall Dimensionsmm3600x2750x20503600x2750x2050
