Name: Surface Grinder(HM306AHD HM30600AH) - June Columbus
SKU: Precision Surface Grinder(HM306AHD HM30600AHD)

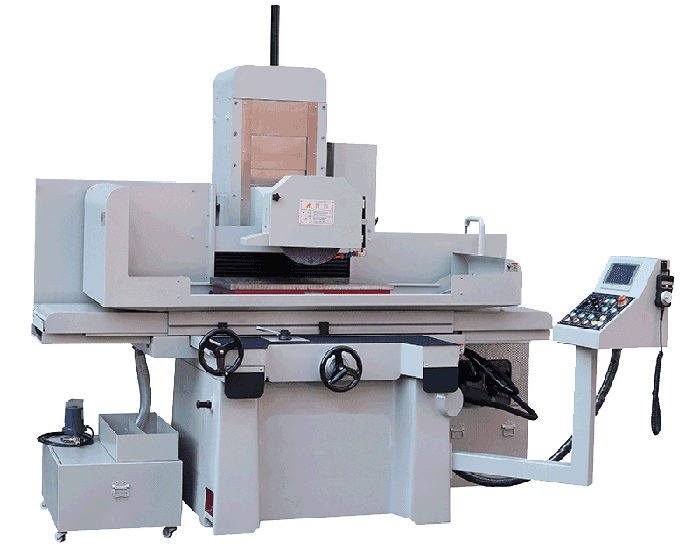

Precision Surface Grinder(HM306AHD HM30600AHD)

Achieves precision surface grinding for impeccable surface finishes.
Available in two models: HM306AHD and HM30600AHD, catering to varying workpiece sizes.
Robust construction ensures stability and durability during grinding operations.
Equipped with advanced features for precise control and efficient surface grinding.

SKU: Precision Surface Grinder(HM306AHD HM30600AHD) Category: Grinding Machine Tag: Grinding Machine

机型 Model		单位 Unit	HM306AHD	HM3060AHD
工作台worktable	工作台尺寸Worktable Size	mm	300x700	300x600
	最大研磨长度（X轴）Max Grinding Length (X-axis)	mm	700	630
	最大研磨宽度（Y轴）Max Grinding Width (Y-axis)	mm	320	330
	主轴至工作台距离（Z轴）Distance from Spindle to Worktable (Z-axis)	mm	550	630
	磁盘尺寸Disk Size	mm	300X600	300x600
进给Feed	Y轴快速移动Y-axis Rapid Movement	mm/min	500	790
	Y轴自动进给量Y-axis Automatic Feed	mm	0.1-5	0.1-10
	Y轴手轮每刻度进给Y-axis Handwheel Feed per Graduation	mm	0.01	0.02
	Y轴手轮每转进给Y-axis Handwheel Feed per Revolution	mm	5	5
	Z轴快速进给量Z-axis Rapid Feed	mm/min	150	230
	Z轴手轮每刻度进给Z-axis Handwheel Feed per Graduation	mm	0.01	0.005
	Z轴手轮每转进给Z-axis Handwheel Feed per Revolution	mm	2	0.2
磨头Grinding Head	砂轮尺寸Grinding Wheel Size	mm	350x25x75	350x20-40x127
磨头Grinding Head	主轴转速Spindle Speed	rpm	1440	1450
精度Accuracy	工作台平行度Worktable Parallelism	μm	0.008	0.004
	主轴跳动Spindle Runout	mm	0.005	0.002
	表面粗糙度Surface Roughness	kw	Ra0.32	Ra0.25
功率Power	主轴电机功率Spindle Motor Power	kw	3	3
功率Power	机床总功率Total Power of Machine	kw	5.5	5.5
重量Weight		mm	1800	2000
外形尺寸Overall Dimensions		mm	1840x1580x2050	2500x1800x2050
