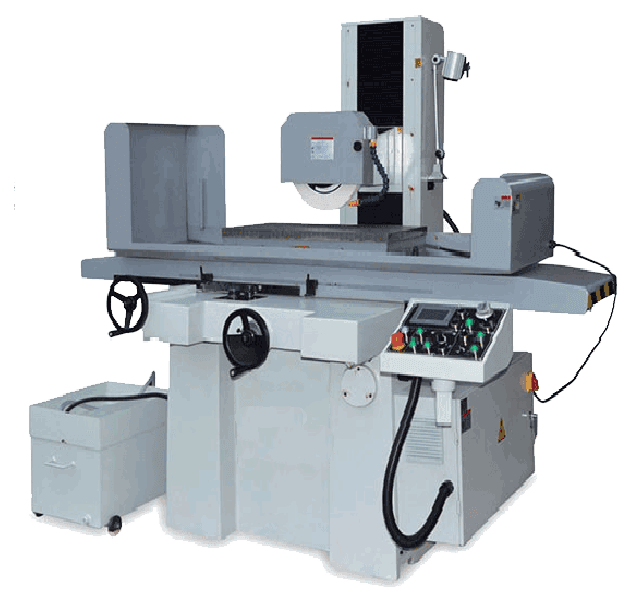

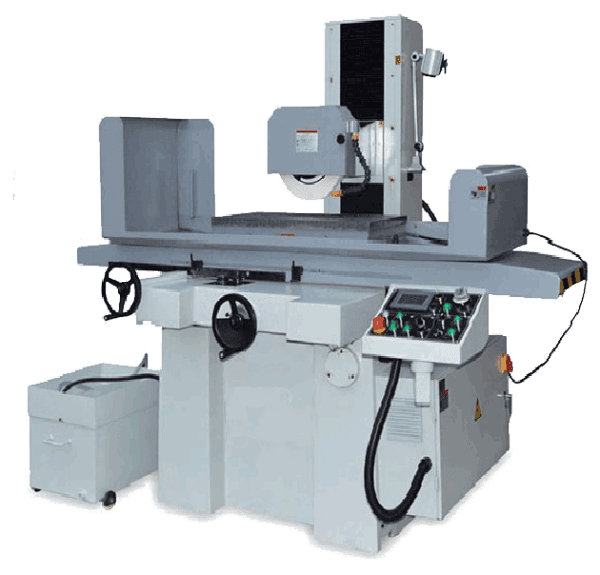

Precision Surface Grinder(HM250AHD HM2550AHD)

Precision surface grinding for high-quality surface finishing.
Two models are available: HM250AHD and HM2550AHD, catering to different workpiece sizes.
Robust construction ensures stability and durability during grinding operations.
Advanced features for precise control and efficient surface grinding.

SKU: Precision Surface Grinder(HM250AHD HM2550AHD) Category: Grinding Machine Tag: Grinding Machine

机型 Model		单位 Unit	HM250AHD	HM2550AHD
工作台Worktable	工作台尺寸Worktable Size	mm	250x500	250x500
	最大研磨长度（X轴）Max Grinding Length (X-axis)	mm	560	560
	最大研磨宽度（Y轴）Max Grinding Width (Y-axis)	mm	270	275
	主轴至工作台距离（Z轴）Distance from Spindle to Worktable (Z-axis)	mm	450	580
	磁盘尺寸Disk Size	mm	250X500	250X500
进给Feed	Y轴快速移动Y-axis Rapid Movement	mm/min	500	790
	Y轴自动进给量Y-axis Automatic Feed	mm	0.1-5	0.1-8
	Y轴手轮每刻度进给Y-axis Handwheel Feed per Graduation	mm	0.01	0.02
	Y轴手轮每转进给Y-axis Handwheel Feed per Revolution	mm	5	5
	Z轴快速进给量Z-axis Rapid Feed	mm/min	150	230
	Z轴手轮每刻度进给Z-axis Handwheel Feed per Graduation	mm	0.01	0.005
	Z轴手轮每转进给Z-axis Handwheel Feed per Revolution	mm	2	0.2
磨头Grinding Head	砂轮尺寸Grinding Wheel Size	mm	200x6-16x31.75	200x6-20x31.75
磨头Grinding Head	主轴转速Spindle Speed	rpm	2850	1450
精度Accuracy	工作台平行度Worktable Parallelism	mm	0.006	0.002
	主轴跳动Spindle Runout	mm	0.005	0.002
	表面粗糙度Surface Roughness	μm	Ra0.32	Ra0.25
功率Power	主轴电机功率Spindle Motor Power	kw	1.5	1.5
功率Power	机床总功率Total Power of Machine	kw	4.2	4.2
重量 Weight		kg	1200	1650
外形尺寸 Overall Dimensions		mm	1680x1250x1920	2200x1500x1980
