Summary

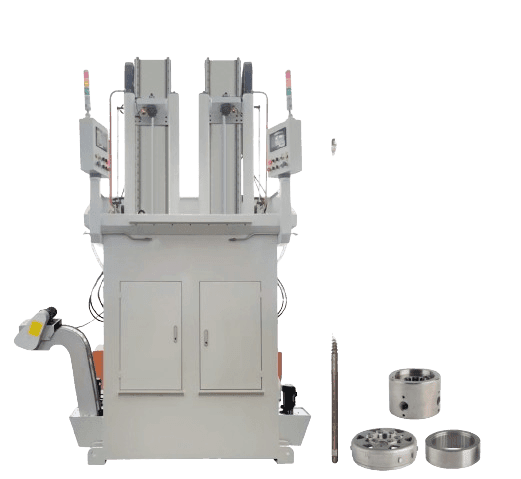

This series of machine tools is a vertical internal broaching machine with semi-protection and full escort structure. The auxiliary sliding plate is installed on the main sliding plate. When the machine tool is working, the clamping device on the main and auxiliary sliding plate can effectively use the front and rear tool holders of the broach at the same time.,to ensure that the broach is fixed during the working process, and there is no displacement at both ends, the workpiece to be processed is fixed on the worktable after self-centering, the broach moves downward, and the broaching is completed to return and return, fully escorted The broaching method effectively guarantees the precision and stability of the machined parts. This equipment installation method is divided into ground installation and buried installation.
This type of machine tool is suitable for processing various types of internal gears, internal splines, and inner holes of geometric shapes. The machine tool adopts hydraulic transmission and step-less speed regulation through the man-machine interface. It can be divided into three operations: automatic circulation, semi-automatic segmentation, and manual adjustment. model.The machine tool is equipped with an automatictool adjustment function.
The machine tool can be equipped with automatic loading and unloading devices(truss manipulator or joint robot), which greatly reduces the labor intensity of the operator, and improves the quality and quantity of parts processing.
The machine tool can also choose a multi-station structure according to the actual needs of customers, and the optional range is determined by the actual calculation of the broaching force

Characteristic

• With a drop-down design, the product does not move, and the tool moves.
• It can be matched with an automatic loading and unloading structure.
• The structure is light and simple, the operation is convenient, and the maintenance cost is low.
• Independent double-station design can run simultaneously with double-station or single-station independently.
• Pressure/speed can be infinitely adjusted.
• Standard automatic knife lifting mechanism.

Patent

Attachment

Technical Parameter

Processing Case
