| 项目内容 (Item) | M-7180X16B | M-7180X20B | M-7180X30B | M-7180X40B |
|---|---|---|---|---|
| 工作台面尺寸（宽X长）（mm） (Workbench Table Size (Width x Length)) | 800X1600 | 800X2000 | 800X3000 | 800X4000 |
| 最大磨削尺寸：长X宽X高（mm） (Maximum Grinding Size: Length x Width x Height) | 1600X800X600 | 2000X800X600 | 3000X800X600 | 4000X800X600 |
| 工作台最大纵向移动量（mm） (Maximum Longitudinal Movement of Workbench) | 1700 | 2100 | 3100 | 4100 |
| 磨头最大横向移动量（mm） (Maximum Transverse Movement of Grinding Head) | 880 | 880 | 880 | 880 |
| 磨头最大垂直移动量（mm） (Maximum Vertical Movement of Grinding Head) | 600 | 600 | 600 | 600 |
| 磨头垂直进给手轮刻度值 (Vertical Feed Handwheel Graduation of Grinding Head) | 每格0.005mm/每转0.5mm (0.005mm per grid/0.5mm per revolution) | 每格0.005mm/每转0.5mm (0.005mm per grid/0.5mm per revolution) | 每格0.005mm/每转0.5mm (0.005mm per grid/0.5mm per revolution) | 每格0.005mm/每转0.5mm (0.005mm per grid/0.5mm per revolution) |
| 砂轮尺寸（mm） (Grinding Wheel Size (mm)) | 450X75X203 | 450X75X203 | 450X75X203 | 450X75X203 |
| 主轴转速（r/min） (Spindle Speed (r/min)) | 1440 | 1440 | 1440 | 1440 |
| 电机总功率（KW） (Total Power (KW)) | 27.5 | 27.5 | 31.5 | 31.5 |
| 砂轮主轴电机（KW） (Grinding Wheel Spindle Motor (KW)) | 15 | 15 | 15 | 15 |
| 油泵电机（KW） (Oil Pump Motor (KW)) | 11 | 11 | 15 | 15 |
| 加工平行度（mm） (Processing Parallelism (mm)) | 0.008/300 | 0.008/300 | 0.008/300 | 0.008/300 |
| 表面粗糙度（μm） (Surface Roughness (μm)) | Ra:0.63 | Ra:0.63 | Ra:0.63 | Ra:0.63 |
| 机床净/毛重（kg） (Net/Gross Weight of Machine (kg)) | 9500/10500 | 10000/11000 | 11500/12500 | 13000/18000 |
| 包装尺寸（长X宽X高）（cm） (Packing Size (Length x Width x Height) (cm)) | 500X230X283 | 620X250X283 | 900X250X283 | 1100X230X283 |
| 液压站配置 (Hydraulic Station Configuration) | External Independent | External Independent | External Independent | External Independent |

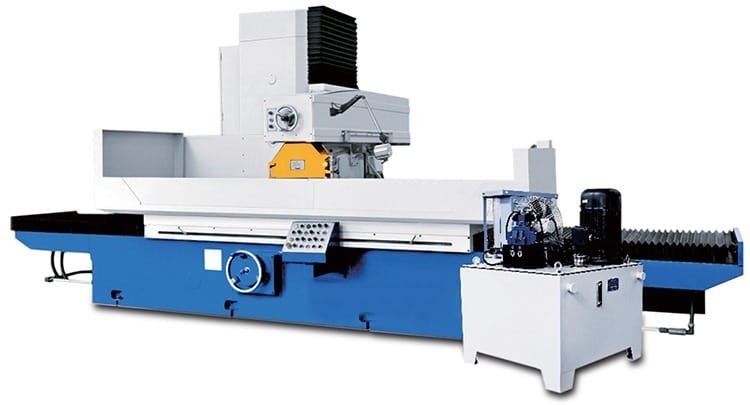

Horizontal spindle surface grinder(M7180)
Grinding Machine
Horizontal spindle surface grinder(M7180)
- Precision Grinding: The Horizontal spindle surface grinder(M7180) ensures precise and consistent surface finishes.
- Efficient Material Removal: Featuring a horizontal spindle design, it facilitates efficient material removal and rapid grinding operations.
- Durable Construction: Built with robust materials, the M7180 guarantees durability and stability in demanding industrial settings.
- Versatile Application: Suitable for a wide range of materials and components, offering versatility in grinding tasks.
