Summary

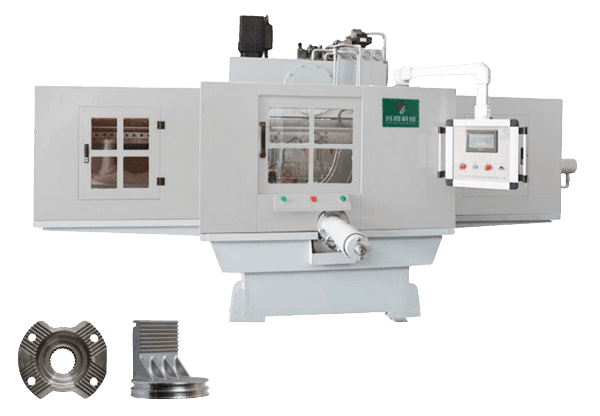

The machine tool is a special horizontal broaching machine for the end face of the flange (fork), which fills the gap in the market and has the advantages of high precision and high efficiency. The Horizontal External Broaching Machine offers precision and efficiency in external broaching operations. Its horizontal orientation ensures seamless operations, while customizable broaching options cater to various machining needs. Engineered for reliability, this machine consistently delivers high-quality results, making it an essential tool for manufacturers seeking optimal performance.
Patent
Attachment
| Standard Equipment | ||||
|---|---|---|---|---|
| Product tooling | Service tool set | Automatic broach head | Automatic knife lifting mechanism | Air pressure knife cleaning mechanism |
| Automatic lubrication system | Automatic chip removal mechanism | Cutting fluid circulation system | Man-machine interface control system | LED lighting |
| Adjusting screws, foot pads | ||||
| Optional Equipment | ||||
| Iron filings conveyor | Broach | Automatic return mechanism | Automatic feeding mechanism | Servo-Hydraulic System |
Technical Parameter
| Technical Parameter | ||
|---|---|---|
| Model | SCWL-C20-W | SCWL-C30-W |
| Tensile Force (KN) | 200 | 300 |
| Maximum Stroke (mm) | 1800 | 2000 |
| Cutting Speed (m/min,60Hz) | 0-8 | 0-6 |
| Return Speed (m/min,60Hz) | 0-15 | 0-15 |
| Maximum Outer Diameter Of The Workpiece (mm) | Customization | Customization |
| Main Motor (kW) | 22 | 30 |
| Covers An Area (mm×mm) | 5100*3000 | 6050*4750 |
| Machine Mass (kg) | 9000 | 10000 |
| Machine Height (mm) | 2800 | 3500 |

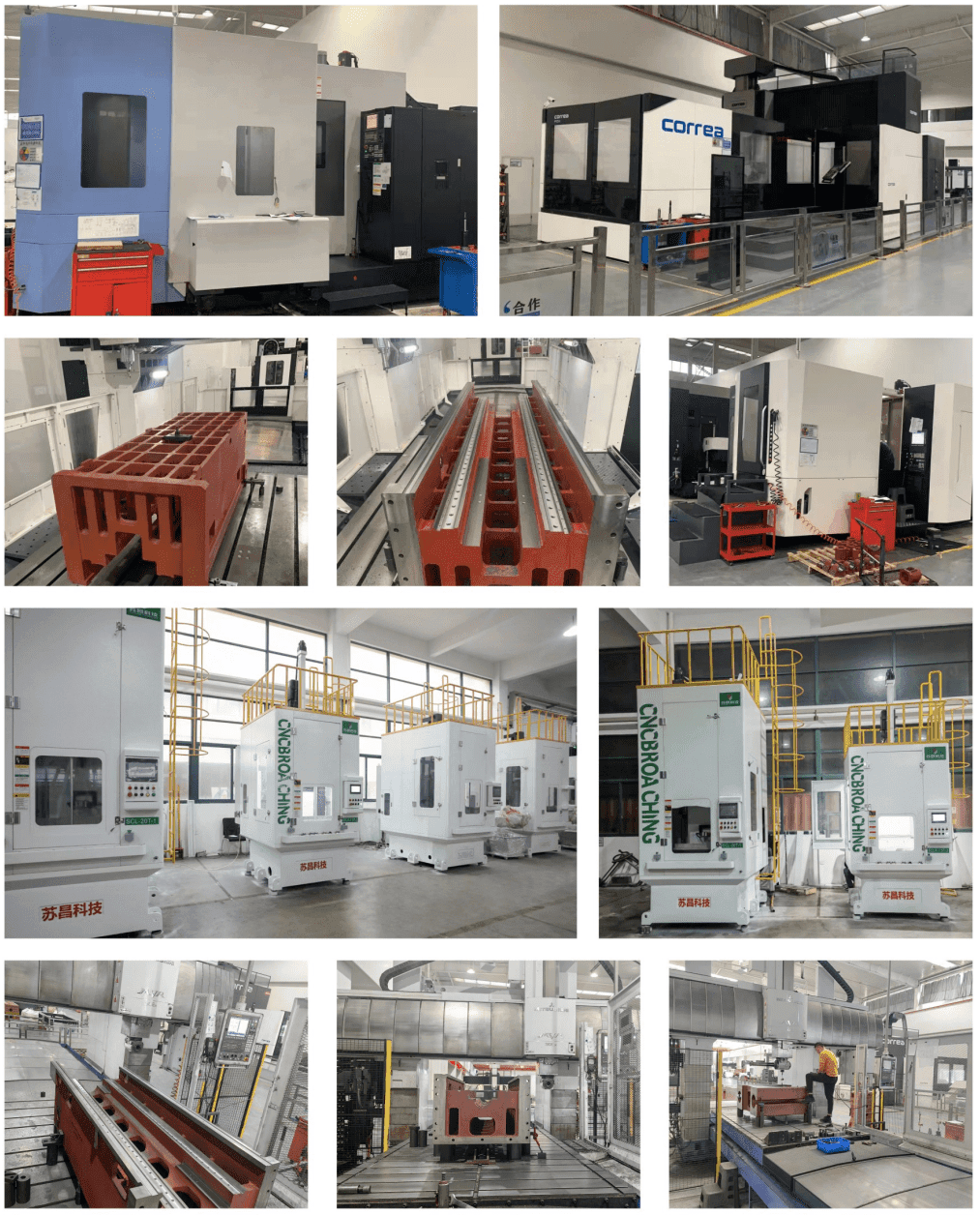

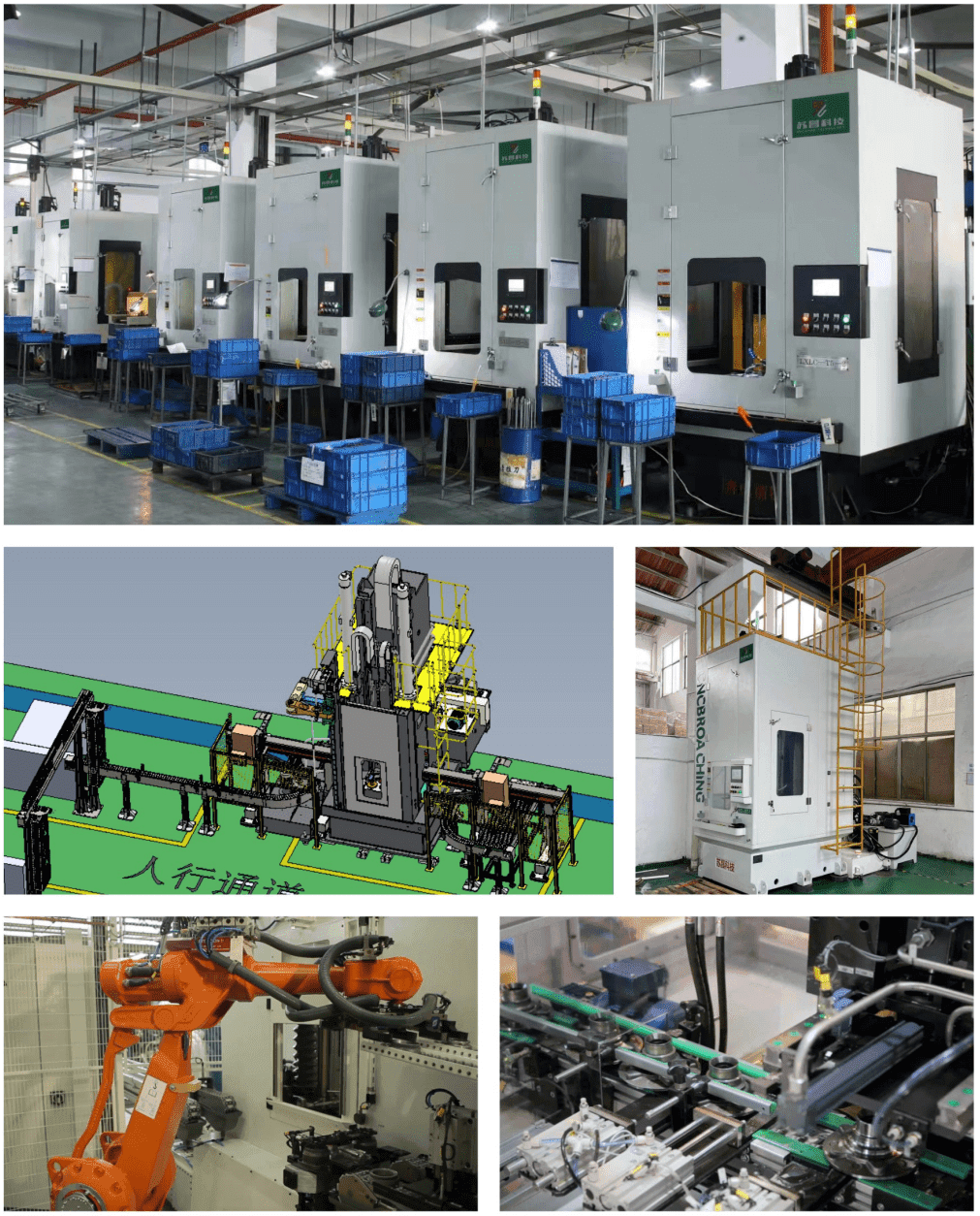

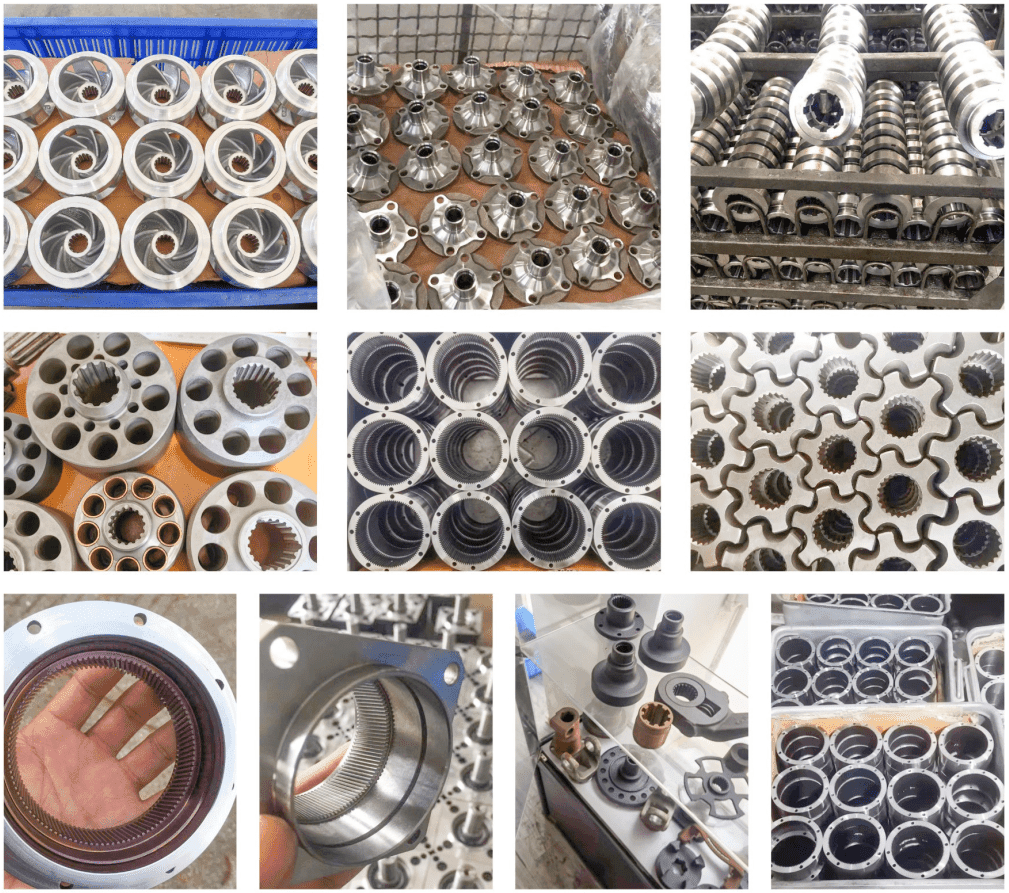

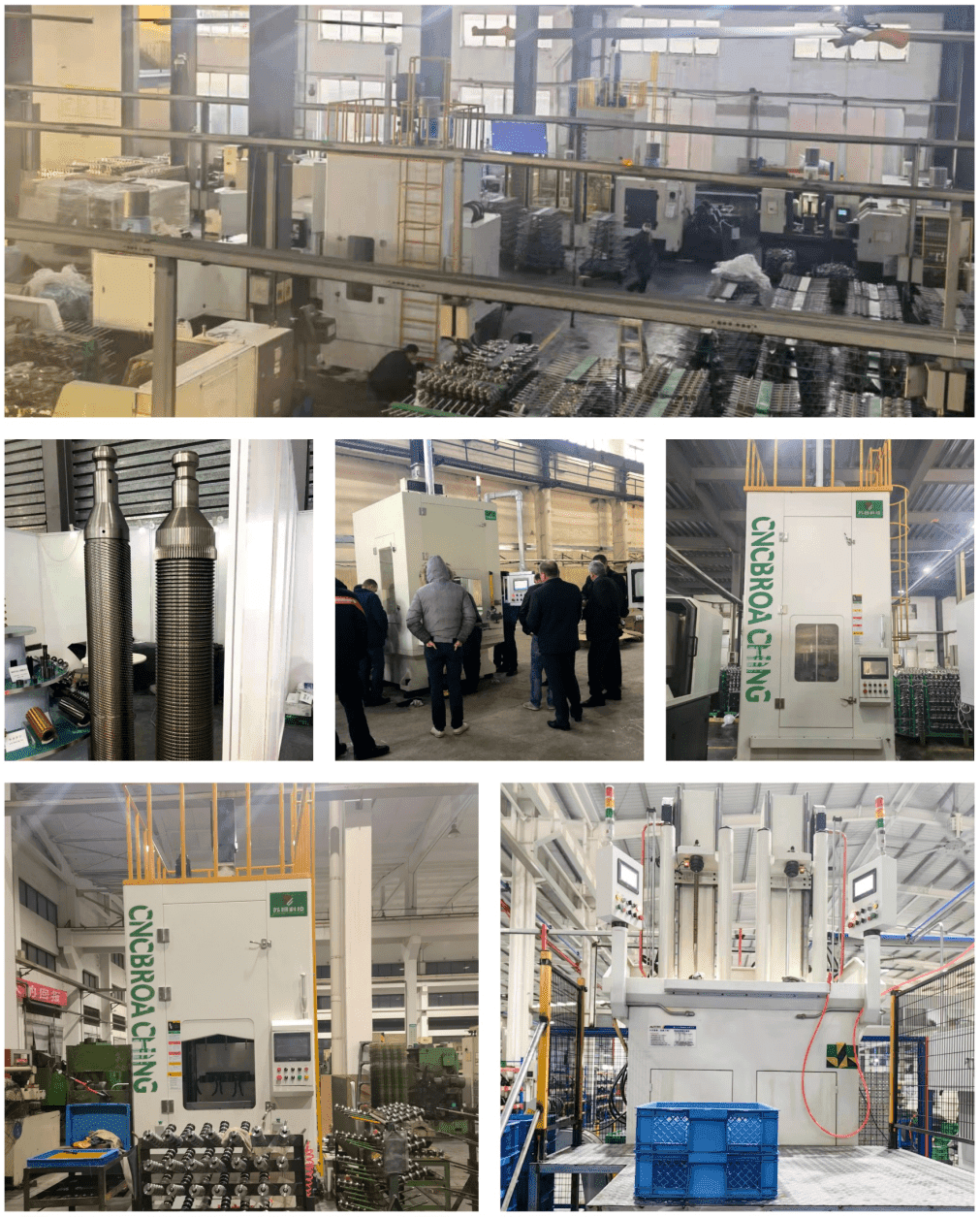

Processing Case
