Summary

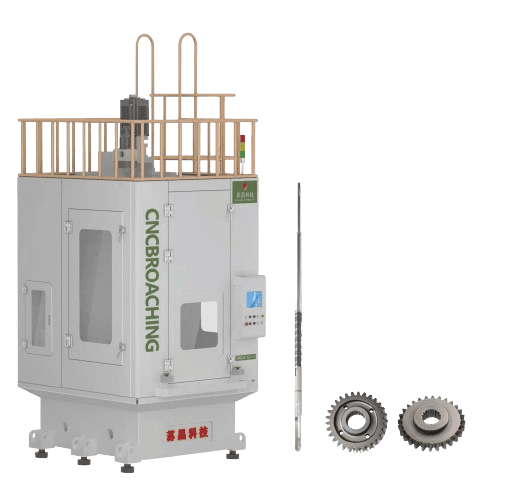

The broaching machine is mainly used for shaping the inner hole, inner spline, and various internal teeth of the workpiece after The key equipment for surface roughness and precision such as internal gears. Carbide tool sharpening can broach nearly 10,000 workpieces once and can sharpen about 15 times in total. The successful development of this broaching machine has filled a blank for my country’s broaching machine manufacturing industry.
Characteristic
- The cutting speed is 0~70m/min; the optimum processing conditions for hard broach are 50~60m/min.
- Reliability at high-speed driving is ensured by a linear roller guide and a special high-rigidity ball screw.
- The workpiece moving type is adopted to reduce the installation height of the workpiece and improve the working efficiency.
- The hydraulic-free system saves energy and space.
- According to the rigidity analysis, optimize the design of the machine column and worktable.
Patent
Attachment
| Standard Equipment | ||||
|---|---|---|---|---|
| Product tooling | Service tool set | Automatic broach head | Automatic knife lifting mechanism | Air pressure knife cleaning mechanism |
| Automatic lubrication system | Automatic chip removal mechanism | Cutting fluid circulation system | Man-machine interface control system | LED lighting |
| Adjusting screws, foot pads | ||||
| Optional Equipment | ||||
| Iron filings conveyor | Broach | Automatic return mechanism | Automatic feeding mechanism |
Technical Parameter
| Technical Parameter | |
|---|---|
| Model | SCYL-C10-SS |
| Tensile Force (KN) | 100 |
| Maximum Stroke (mm) | 1300 |
| Cutting Speed (m/min,60Hz) | 0-70 |
| Return Speed (m/min,60Hz) | 0-70 |
| Maximum Outer Diameter Of The Workpiece (mm) | Customization |
| Workpiece Table Height (mm) | 1100 |
| Main Motor (kW) | 100 |
| Covers An Area (mm×mm) | 2300*3400 |
| Machine Mass (kg) | 9500 |
| Machine Height (mm) | 3700 |
