Standard Accessories

• Fully enclosed protective cover
• Automatic lubrication system
• Circulating cooling system
• Quartz work light
• Work status warning light
• Hand-held electronic handwheel
• Toolbox and tools
• Automatic chip removal machine
• Pressing plate
• Program manual and operation manual
• Transmission line or network cable
• Horizontal adjustment screws and pads
• Electrical box air conditioner
• Certificate of conformity, maintenance manual
• Laser watch, CF card
• Spindle oil cooler
• Oil water separation device
• Tool magazines(24 pieces)

Selective Accessories

• Spindle center water outlet system
• BBT40 knife handle
• Oil mist recovery device
• Automatic measuring head
• Tool setting gauge
• Siemens 840D
• HuaZong 848D
• Syntec 220MA-5
• Heidenhain

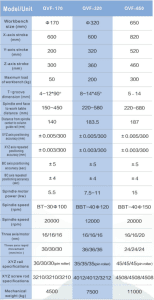

Parameter

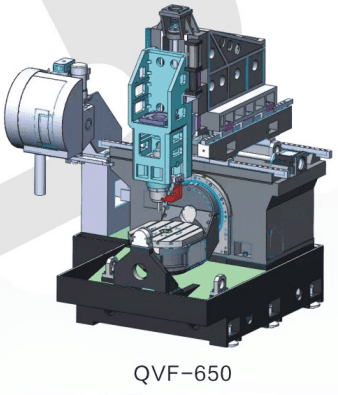

The machine tool bed, column, sliding plate, crossbeam, and spindle box are all designed with reinforced structures. The column is fixed on the bed, and the machine tool castings are all made of resin sand castings. After two manual aging treatments, the stability is good, the strength is high, and all accuracy is stable and reliable.

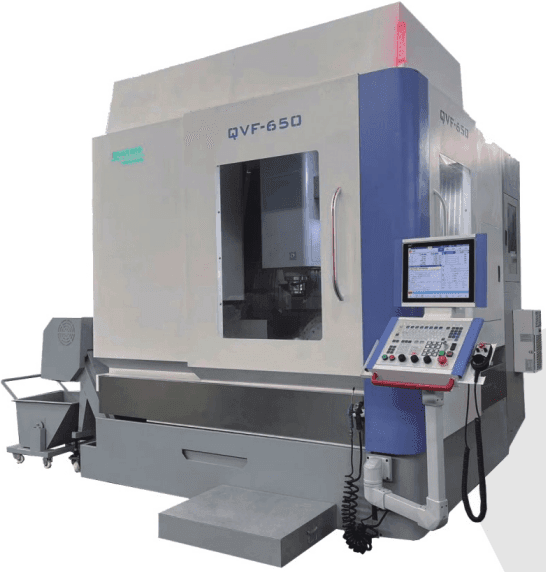

The QVF-650 five-axis machining center adopts a spindle servo motor directly connected to high-speed spindle components, with a wide range of step-less speed changes and a maximum speed of 20000 rpm. Adopting a separate oil cooling system for circulating cooling of high-speed spindle components. Ensure that the main transmission system maintains a constant temperature, thereby ensuring that the machine tool maintains stable working accuracy.

The diameter of the cradle turntable is 650mm, and both the B and C axes are driven by torque motors. The B and C CNC axes are fully closed-loop controlled rotating axes, and the absolute angle encoder from HEIDENHAIN in Germany is used as the position detection component. The turntable oil cooling system is used for constant temperature cooling of the B and C axes to ensure the optimal torque output of the torque motor.

The tool magazine adopts a cam-type (disc-type) robotic arm tool magazine with a capacity of 24 pieces. The tool magazine has the characteristics of fast tool changing speed, bidirectional arbitrary tool selection, and accurate and reliable tool changing.

The machine tool is equipped with a Siemens 840D control system, which has complete function, reliable performance, and convenient operation, and has been widely adopted by domestic users.
