Summary

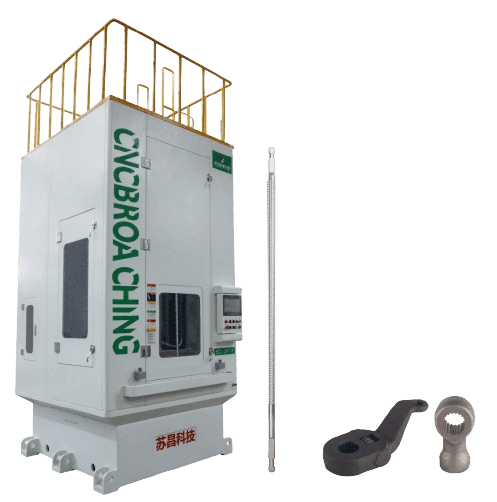

Guided by linear roller guides. Use a self-designed hydraulic system and imported hydraulic accessories to ensure high-speed and stable operation according to the rigidity analysis, optimize the design of the machine body, The workpiece moving type is adopted to reduce the installation height of the workpiece and improve the working efficiency.
The machine tool is used to process the internal splines of the transmission gear sleeve. The machine tool can process various internal splines by changing the fixture and broach.
The machine tool adopts a large flow cooling method to ensure sufficient cooling of the workpiece during broaching, reduce the residual amount of iron chips on the tool, and improve the tool life lubrication point adopts the centralized lubrication method of the lubrication pump station to ensure sufficient lubrication.
The machine tool is equipped with an error-proof alarm device to ensure the correct processing of different products.
The machine tool adopts a vertical layout and occupies a small The machine tool adopts fully enclosed protection, and the processing is safe and reliable.
Characteristic
- It can be equipped with automatic loading and unloading mechanism.
- 1~3 tool holders can be designed according to production capacity requirements.
- The servo-hydraulic system can be selected to precisely control the oil flow.
- For processing product internal teeth or keyways.
- Accurate positioning, fast broaching, and high precision.
- High-strength body design, long service life.
- Pressure/speed can be adjusted steplessly.
- Automatic knife lifting mechanism.
Patent
Attachment
| Standard Equipment | ||||
|---|---|---|---|---|
| Product tooling | Service tool set | Automatic broach head | Automatic knife lifting mechanism | Air pressure knife cleaning mechanism |
| Automatic lubrication system | Automatic chip removal mechanism | Cutting fluid circulation system | Man-machine interface control system | LED lighting |
| Adjusting screws, foot pads | ||||
| Optional Equipment | ||||
| Iron filings conveyor | Broach | Automatic return mechanism | Automatic feeding mechanism | Servo-Hydraulic System |
Technical Parameter
| Technical Parameter | |||
|---|---|---|---|
| Model | SCL-C10-YY | SCL-C15-YY | SCL-C20-YY |
| Tensile Force (KN) | 100 | 150 | 200 |
| Maximum Stroke (mm) | 1200 | 1500 | 1600 |
| Number Of Stations | 1-3 | 1-3 | 1-3 |
| Cutting Speed (m/min,60Hz) | 0-8 | 0-8 | 0-8 |
| Return Speed (m/min,60Hz) | 0-15 | 0-15 | 0-15 |
| Maximum Outer Diameter Of The Workpiece (mm) | Customization | Customization | Customization |
| Workpiece Table Height (mm) | 1100 | 1150 | 1200 |
| Main Motor (kW) | 15 | 18.5 | 22 |
| Covers An Area (mm×mm) | 2450*3900 | 2500*4200 | 2650*4500 |
| Machine Mass (kg) | 9000 | 11500 | 13000 |
| Machine Height (mm) | 3400 | 3800 | 4200 |
Processing Case
