Summary

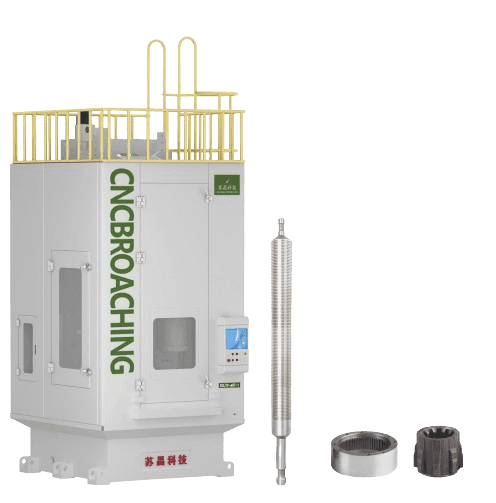

This machine tool is based on the general pull-up type internal broaching machine. The hydraulic system is driven by double oil cylinders. The double main oil cylinders of the broaching machine are installed on the tabletop of the bed table. The center line of the two oil cylinders and the center line of the main and auxiliary clamping bodies are in the same straight line and vertical plane, and there is no turning moment. This type of machine tool is more suitable for more Simultaneous processing of large workpieces or multiple stations, high broaching accuracy, and stable performance equipment are installed on the ground and are equipped with a maintenance station, which is convenient for the daily maintenance of the machine tool. The machine tool is equipped with an automatic tool adjustment function.
The machine tool can be equipped with automatic loading and unloading devices (truss manipulator or joint robot), which greatly reduces the labor intensity of the operator, and improves the quality and quantity of parts processing.
The machine tool can choose a multi-station structure according to the actual needs of customers, and the optional range is determined according to the actual calculation of the broaching force.

Characteristic

• It can be equipped with automatic loading and unloading mechanism.
• 1~3 tool holders can be designed according to production capacity requirements.
• The servo-hydraulic system can be selected to precisely control the oil flow.
• For processing product internal teeth or keyways.
• Accurate positioning, fast broaching, and high precision.
• High-strength body design, long service life.
• Pressure/speed can be adjusted stepless.
• Automatic knife lifting mechanism.
