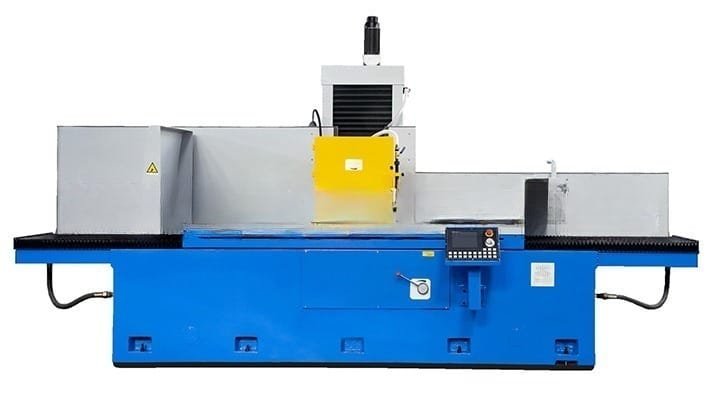

Characteristics of this series of machine tools:
- This machine tool is a column-type high-precision machine tool with CNC functions for the Z and Y axes. The operating panel adopts a 7.5-inch touchscreen with an electronic handwheel, making operation simple and closer to user needs.
- Greatly reduces the labor intensity of employees, enabling one person to operate multiple machines, suitable for grinding various precision parts and tooling molds.
- The longitudinal reciprocating motion of the worktable is driven by an independent hydraulic station, ensuring smooth operation, low noise, and low-temperature rise.
- The feed of the grinding head is controlled by a two-axis CNC, capable of automatic rough, precision, and finishing grinding with automatic feed and retraction. The interface input is intuitive and convenient.
- The control system comes standard with the Taiwan New Generation system.
| 项目内容 | Item Contents | ML6312/2K | ML6316/2K | ML6320/2K | ||
|---|---|---|---|---|---|---|
| 工作台面尺寸：长 × 宽（ mm） | Working table size（WxL） | 1250X630 | 1600X630 | 2000X630 | ||
| 最大磨削尺寸：长× 宽× 高（ mm） | Max.grinding sizeno chuck（LxWxH） | 1250X630X450 | 1600X630X450 | 2000X630X450 | ||
| 工作台左右最大移动量（mm） | Max. longitudinaltravelof table | 1350 | 1800 | 2200 | ||
| 工作台前后最大移动量（mm） | Max. cross travleoftable | 690 | 690 | 690 | ||
| 工作台最大承受重量（kg） | Max. load oftable | 900 | 1100 | 1400 | ||
| 工作台T 形槽（ mm） | T- slotsize | 3X18 | 3X18 | 3X18 | ||
| 磨头主轴中心到台面距离（ m m ） | 最大 | Distancefrom spindleaxisto surfaceoftable | Max. | 675 | 675 | 675 |
| 最小 | Min. | 215 | 215 | 215 | ||
| 磨头垂直自动进给量（mm） | Auto verticalfeedingvalueofgrindinghead | Automatic feed rate 0.002-0.04 | ||||
| 砂轮尺寸（外径× 内径× 宽度）（ mm） | Wheel size | 450X203X50 | 450X203X50 | 450X203X50 | ||
| 砂轮主轴类型 | Type of wheel spindle | Dynamic Pressure Spindle | Dynamic Pressure Spindle | Dynamic Pressure Spindle | ||
| 砂轮主轴电机（Kw） | Wheel spindlemotor | 7.5 | 7.5 | 7.5 | ||
| 前后手轮进刀（mm） | 1 格 | Cross handwheel feeding | Pergrad. | Manual pulse 1 grid x 1 multiplier 0.005-0.01 adjustable | ||
| 1 格 | Perrev. | Manual pulse 1 grid x 10 multiplier 0.01 | ||||
| 上下手轮进刀（mm） | 1 格 | Vertical handwheel feeding | Pergrad. | Manual pulse 1 grid x 1 multiplier, adjustable from 0.001 to 0.01 | ||
| 1 格 | Perrev. | Manual pulse 1 grid x 10 multiplier 0.01 | ||||
| 前后快速移动速度（mm/min） | Cross quicktravelspeed | 3000 | 3000 | 3000 | ||
| 上下快速移动速度（mm/min） | Verticalquick travelspeed | 600 | 600 | 600 | ||
| 砂轮主轴转速（r/min） | Grinding wheel speed | 1440 | 1440 | 1440 | ||
| 磨头垂直进给电机 | Verticalfeeding motor ofgrinding wheel | Servo Motor 15 Nm | Servo Motor 15 Nm | Servo Motor 15 Nm | ||
| 工作台前后进给电机 | Cross feeding motor oftable | Servo Motor 18 Nm | Servo Motor 18 Nm | Servo Motor 18 Nm | ||
| 油泵电机（Kw） | Oilp u m p motor | 5.5 | 7.5 | 7.5 | ||
| 水泵电机（Kw） | Water p u m p motor | 0.25 | 0.25 | 0.25 | ||
| 液压站配置 | Configuration of hydraulic station | Independent External Configuration of Hydraulic Station | Independent External Configuration of Hydraulic Station | Independent External Configuration of Hydraulic Station | ||
