Feature

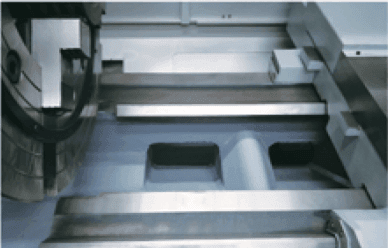

• The integral bed, cast from high-quality and high-strength cast iron, provides excellent rigidity and high precision.
• The surface of the guide rail undergoes ultrasonic frequency induction hardening treatment, resulting in high hardness and extended service life.
• The apron adopts a guide rail surface plastic coating process, ensuring good wear resistance and high precision.

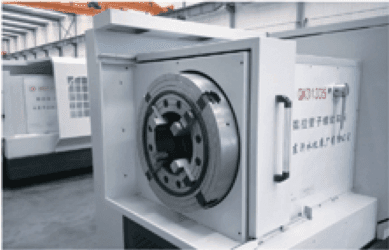

• The large spindle aperture and high throughput, coupled with dual chuck workpiece clamping, ensure stable machining operations.

Standard Configuration

• Hydraulic tool turret
• pneumatic chuck
• hydraulic tailstock
• automatic centralized lubrication
• cooling system
• enclosed protective cover

Optional Configuration

• Siemens CNC systems
• Fanuc CNC systems
• Guangzhou CNC systems
• Kaida Emperor CNC systems
• power tool turret
• power tools

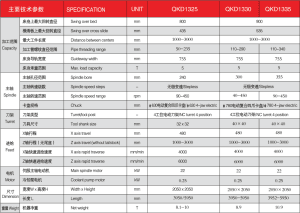

Parameter

Factory
