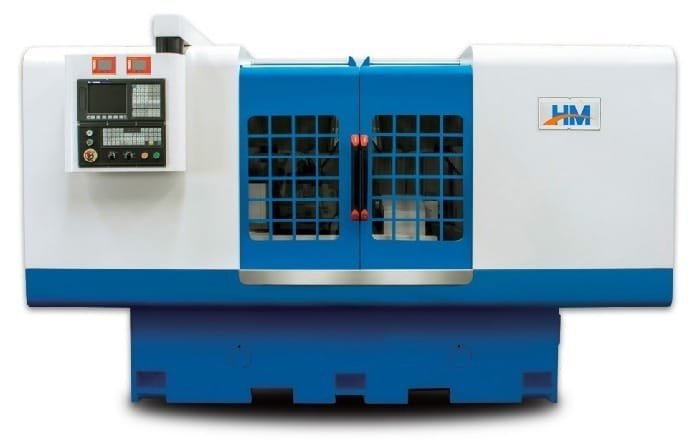

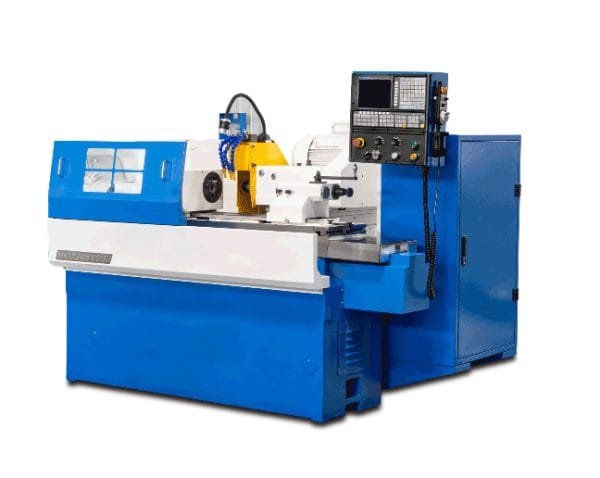

The characteristics of this series of machine tools are as follows:
- The series adopts an integral high-rigidity bed structure, with high universality and modularity, making it widely applicable. The standard configuration of the machine tool adopts the GSK internal/external cylindrical grinding CNC system, which features stable performance, simple operation, easy maintenance, and high precision control. It can achieve programmed grinding, measurement-controlled grinding (requires optional measuring device), automatic wheel dressing, compensation, and other functions.
- The grinding wheel spindle adopts a sleeve-type dynamic pressure spindle, ensuring high rotary precision, strong rigidity, and low-temperature rise.
- The moving guide rails of the grinding wheel carriage and worktable adopt a hard rail structure, imported ball screws, and high-torque servo motors to ensure feed rigidity and accuracy. The headstock is driven by a servo motor, enabling stepless speed regulation and precise stopping at any position.
- It can be equipped with imported or domestic active measuring devices to realize online measurement of grinding processes. The tailstock adopts a hydraulic telescopic sleeve structure.
- Control System: Standard configuration – GSK grinding system; Optional configuration: New Generation Siemens, FANUC.
| 项目内容 | Item Contents | MK1332x500 | MK1332x1000 | MK1332x1500 |
|---|---|---|---|---|
| 工作台上最大回转直径（mm） | Max.grinding diameter on table | Φ350 | Φ350 | Φ350 |
| 两顶尖最大距离（mm） | Max. distance between two centers | 520 | 1000 | 1500 |
| 卡盘夹持承载重量（Kg） | Max.chuck load | 40（Optional configuration） | 40（Optional configuration） | 40（Optional configuration） |
| 顶尖间最大承载重量（Kg） | Max.load between two centers | 130 | 130 | 130 |
| 外圆磨削范围（mm） | Max. external grinding diameter and length | (Φ8-Φ320)x500 | (Φ8-Φ320)x1000 | (Φ8-Φ320)x1500 |
| 头架顶尖孔（Morse） | Spindle taper of headstock | MT.5 | MT.5 | MT.5 |
| 尾架顶尖孔（Morse） | Spindle taper of tailstock | MT.5 | MT.5 | MT.5 |
| 外圆砂轮尺寸（外径 x 宽 x 内孔）（mm） | External grinding wheel size | Φ400x40xΦ203 | Φ400x40xΦ203 | Φ400x40xΦ203 |
| 砂轮架、工作台进给速度（x、y 轴） | Feeding speed of grinding wheel and table | 0.05-3000 | 0.05-3000 | 0.05-3000 |
| （mm/min） | ||||
| X、Y 轴最小设定单位（mm） | Min.setting unit ( X and Z axis ) | 0.001 | 0.001 | 0.001 |
| 主轴类型 | Type of wheel spindle | Dynamic pressure | Dynamic pressure | Dynamic pressure |
| 砂轮主轴电机（KW） | Motor of grinding wheel spindle | 5.5 | 5.5 | 5.5 |
| 主轴转速（r/min） | Spindle speed | 1440 | 1440 | 1440 |
| 砂轮线速度（m/min） | 35 | 35 | 35 | |
| 头架主轴电机（KW） | Motor of headstock grinding spindle | 0.55 | 0.55 | 0.55 |
| 头架转速（r/min） | Motor speed of headstock grinding spindle | 0-320 | ||
| 砂轮架进给电机（N.m） | Feeding motor of grinding wheel | 15 | 15 | 15 |
| 工作台进给电机（N.m） | Feeding motor of worktable | 7.5 | 7.5 | 7.5 |
| 总电源功率（KW） | Total drive capacity | 10.88 | 10.88 | 10.88 |
| 工作精度（mm） | Accurancy | National standard | ||
| 圆度（mm） | Roundness | 0.003 | 0.003 | 0.003 |
| 圆柱度（mm） | Cylindricity | 0.005 | 0.008 | 0.008 |
| 表面粗糙度（um） | Surface roughness | Ra ≤ 0.16 | Ra ≤ 0.16 | Ra ≤ 0.16 |
| 机床净重（Kg） | Net weight/Gross weight | 4300 | 3300 | 3800 |
| 机床尺寸（长 x 宽 x 高）（mm） | Packing dimension | 3200X2000X1800 | 3200X1800X1420 | 4200X1800X1420 |
